Geospatial Indexing is an indexing approach that gives a sublime option to handle location-based knowledge. It makes geospatial knowledge could be searched and retrieved effectively in order that the system can present the very best expertise to its customers. This text goes to show how this works in apply by making use of a geospatial index to real-world knowledge and demonstrating the efficiency acquire by doing that. Let’s get began. (Notice: When you’ve got by no means heard of the geospatial index or wish to study extra about it, try this article)

The info used on this article is the Chicago Crime Data which is part of the Google Cloud Public Dataset Program. Anybody with a Google Cloud Platform account can entry this dataset without cost. It consists of roughly 8 million rows of knowledge (with a complete quantity of 1.52 GB) recording incidents of crime that occurred in Chicago since 2001, the place every file has geographic knowledge indicating the incident’s location.

Not solely that we’ll use the information from Google Cloud, but in addition we’ll use Google Massive Question as an information processing platform. Massive Question supplies the job execution particulars for each question executed. This contains the quantity of knowledge used and the variety of rows processed which will probably be very helpful for example the efficiency acquire after optimization.

What we’re going to do to show the ability of the geospatial index is to optimize the efficiency of the location-based question. On this instance, we’re going to make use of Geohash as an index due to its simplicity and native help by Google BigQuery.
We’re going to retrieve all information of crimes that occurred inside 2 km of the Chicago Union Station. Earlier than the optimization, let’s see what the efficiency seems to be like after we run this question on the unique dataset:

-- Chicago Union Station Coordinates = (-87.6402895591744 41.87887332682509)
ST_DISTANCE(ST_GEOGPOINT(longitude, latitude), ST_GEOGFROMTEXT("POINT(-87.6402895591744 41.87887332682509)")) <= 2000

Under is what the job data and execution particulars appear to be:

Job data(Picture by creator)
Execution particulars(Picture by creator)

From the variety of Bytes processed and Information learn, you possibly can see that the question scans the entire desk and processes each row with the intention to get the ultimate end result. This implies the extra knowledge we now have, the longer the question will take, and the dearer the processing price will probably be. Can this be extra environment friendly? In fact, and that’s the place the geospatial index comes into play.

The issue with the above question is that though many information are distant from the point-of-interest(Chicago Union Station), it must be processed anyway. If we are able to eradicate these information, that may make the question much more environment friendly.

Geohash could be the answer to this situation. Along with encoding coordinates right into a textual content, one other energy of geohash is the hash additionally incorporates geospatial properties. The similarity between hashes can infer geographical similarity between the areas they symbolize. For instance, the 2 areas represented by wxcgh and wxcgd are shut as a result of the 2 hashes are very related, whereas accgh and dydgh are distant from one another as a result of the 2 hashes are very totally different.

We will use this property with the clustered table to our benefit by calculating the geohash of each row prematurely. Then, we calculate the geohash of the Chicago Union Station. This manner, we are able to eradicate all information that the hashes are usually not shut sufficient to the Chicago Union Station’s geohash beforehand.

Right here is how you can implement it:

  1. Create a brand new desk with a brand new column that shops a geohash of the coordinates.
CREATE TABLE `<project_id>.<dataset>.crime_with_geohash_lv5` AS (
SELECT *, ST_GEOHASH(ST_GEOGPOINT(longitude, latitude), 5) as geohash
FROM `bigquery-public-data.chicago_crime.crime`

2. Create a clustered desk utilizing a geohash column as a cluster key

CREATE TABLE `<project_id>.<dataset>.crime_with_geohash_lv5_clustered`
CLUSTER BY geohash
AS (
FROM `<project_id>.<dataset>.crime_with_geohash_lv5`

Through the use of geohash as a cluster key, we create a desk by which the rows that share the identical hash are bodily saved collectively. If you consider it, what truly occurs is that the dataset is partitioned by geolocation as a result of the nearer the rows geographically are, the extra seemingly they are going to have the identical hash.

3. Compute the geohash of the Chicago Union Station.
On this article, we use this website however there are many libraries in varied programming languages that will let you do that programmatically.

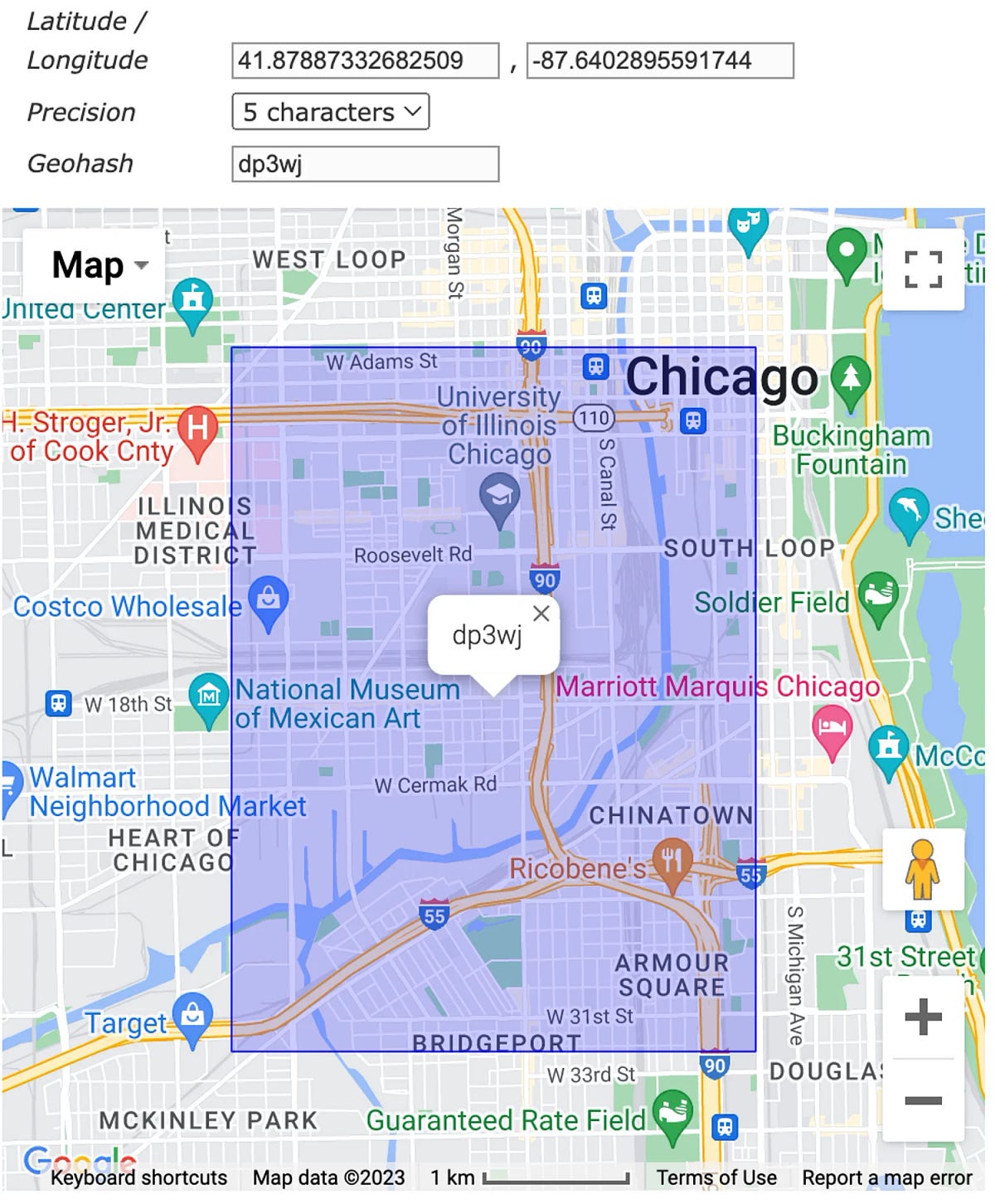

Geohash of the Chicago Union Station(Picture by creator)

4. Add the geohash to the question situation.

geohash = "dp3wj" AND
ST_DISTANCE(ST_GEOGPOINT(longitude, latitude), ST_GEOGFROMTEXT("POINT(-87.6402895591744 41.87887332682509)")) <= 2000

This time the question ought to solely scan the information situated within the dp3wj for the reason that geohash is a cluster key of the desk. This supposes to avoid wasting a whole lot of processing. Let’s examine what occurs.

Job data after making a clustered desk(Picture by creator)
Execution particulars after making a clustered desk(Picture by creator)

From the job data and execution particulars, you possibly can see the variety of bytes processed and information scanned decreased considerably(from 1.5 GB to 55 MB and 7M to 260k). By introducing a geohash column and utilizing it as a cluster key, we eradicate all of the information that clearly don’t fulfill the question beforehand simply by taking a look at one column.

Nevertheless, we’re not completed but. Take a look at the variety of output rows fastidiously, you’ll see that it solely has 100k information the place the right end result will need to have 380k. The end result we acquired remains to be not appropriate.

5. Compute the neighbor zones and add them to the question.

On this instance, all of the neighbor hashes are dp3wk, dp3wm, dp3wq, dp3wh, dp3wn, dp3wu, dp3wv, and dp3wy . We use on-line geohash explore for this however, once more, this may completely be written as a code.

Neighbors of the dp3wj(Picture by creator)

Why do we have to add the neighbor zones to the question? As a result of geohash is just an approximation of location. Though we all know Chicago Union Station is within the dp3wj , we nonetheless do not know the place precisely it’s within the zone. On the prime, backside, left, or proper? We do not know. If it is on the prime, it is potential some knowledge within the dp3wm could also be nearer to it than 2km. If it is on the suitable, it is potential some knowledge within the dp3wn zone could nearer than 2km. And so forth. That is why all of the neighbor hashes should be included within the question to get the right end result.

Notice that geohash degree 5 has a precision of 5km. Subsequently, all zones aside from these within the above determine will probably be too removed from the Chicago Union Station. That is one other vital design selection that must be made as a result of it has a big impact. We’ll acquire little or no if it’s too coarse. Alternatively, utilizing too superb precision-level will make the question refined.

Right here’s what the ultimate question seems to be like:

geohash = "dp3wk" OR
geohash = "dp3wm" OR
geohash = "dp3wq" OR
geohash = "dp3wh" OR
geohash = "dp3wj" OR
geohash = "dp3wn" OR
geohash = "dp3tu" OR
geohash = "dp3tv" OR
geohash = "dp3ty"
ST_DISTANCE(ST_GEOGPOINT(longitude, latitude), ST_GEOGFROMTEXT("POINT(-87.6402895591744 41.87887332682509)")) <= 2000

And that is what occurs when executing the question:

Job data after including neighbor hashes(Picture by creator)
Execution particulars after including neighbor hashes(Picture by creator)

Now the result’s appropriate and the question processes 527 MB and scans 2.5M information in complete. As compared with the unique question, utilizing geohash and clustered desk saves the processing useful resource round 3 instances. Nevertheless, nothing comes without cost. Making use of geohash provides complexity to the best way knowledge is preprocessed and retrieved equivalent to the selection of precision degree that must be chosen prematurely and the extra logic of the SQL question.

On this article, we’ve seen how the geospatial index can assist enhance the processing of geospatial knowledge. Nevertheless, it has a price that must be properly thought-about prematurely. On the finish of the day, it’s not a free lunch. To make it work correctly, a superb understanding of each the algorithm and the system necessities is required.
