Please Cease Drawing Neural Networks Flawed | by Aaron Grasp | Mar, 2023

[ad_1]

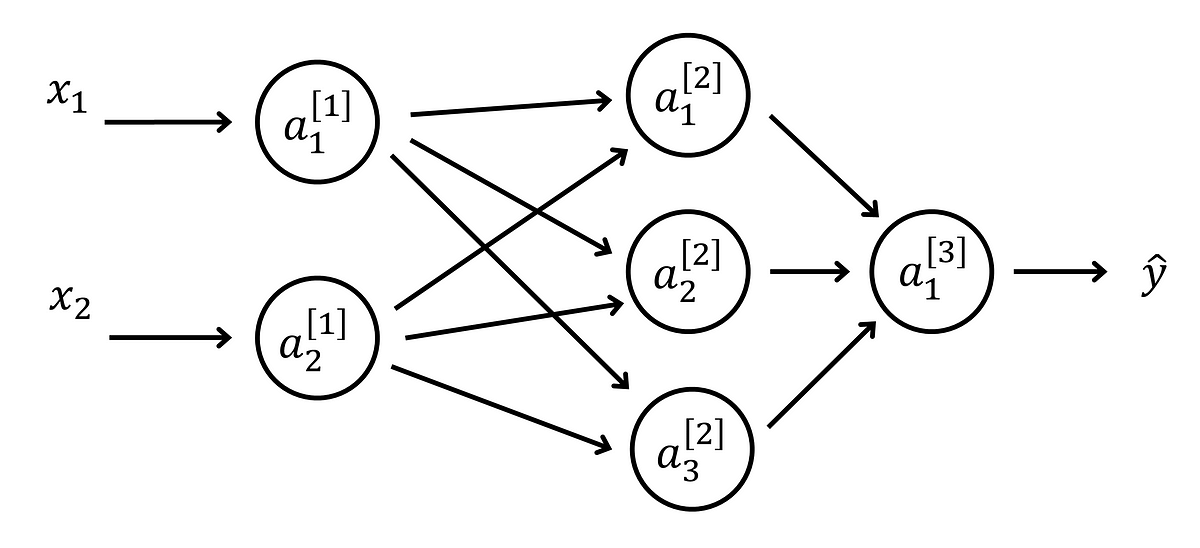

Picture by the authors, tailored from https://tikz.net/neural_networks/ (CC BY-SA 4.0)

By Aaron Grasp and Doron Bergman

For those who’re one of many hundreds of thousands of people that has tried to be taught neural networks, odds are you’ve seen one thing just like the above picture.

There’s only one downside with this diagram: it’s nonsense.

By which we imply complicated, incomplete, and doubtless improper. The diagram, impressed by one in a well-known on-line Deep Studying course, excludes the entire bias coefficients and reveals knowledge as if it had been a operate or node. It “in all probability” reveals the inputs incorrectly. We are saying in all probability, as a result of even after one in all us earned certificates for finishing programs this type of diagram is utilized in, it’s roughly unimaginable to find out what it’s attempting to indicate.¹

Different neural community diagrams are unhealthy in numerous methods. Right here’s an illustration impressed by one in a TensorFlow course from a sure Mountain View — primarily based promoting firm:

Picture by the authors, tailored from the earlier picture.

This one reveals the inputs extra clearly than the primary one, which is an enchancment. Nevertheless it does different bizarre stuff: it reveals the bias by identify however doesn’t diagram it visually, and likewise reveals portions out of the order wherein they’re used or created.

It’s onerous to guess how these diagrams got here to be. The primary one seems superficially much like flow network diagrams utilized in graph concept. Nevertheless it violates a core rule of such circulate diagrams, which is that the quantity of circulate right into a node equals the quantity of circulate out of it (with exceptions that don’t apply right here). The second diagram seems like possibly it began as the primary one, however then wound up being edited to indicate each parameters and knowledge, which then wound up within the improper order.² Neither of those diagrams reveals the bias visually (and neither do most others we’ve seen) however this alternative doesn’t save a lot area, as we’ll see beneath.

We didn’t cherry decide these diagrams. An web picture seek for “neural community diagrams” reveals that these above are the norm, not the exception.

The diagrams above would in all probability be positive in the event that they had been getting used solely amongst seasoned professionals. However alas, they’re being deployed for pedagogical functions on hapless college students of machine studying.

Learners encountering such weirdness should make written or psychological notes corresponding to “there may be bias right here, however they aren’t exhibiting it,” or “the factor they’re drawing inside a circle is definitely the output of processing proven inside the identical circle two slides in the past” or “the inputs don’t really work they approach they’re drawn.” The well-known (and usually glorious) course talked about above options lectures the place the trainer patiently repeats a number of instances {that a} given community doesn’t really work the way in which a diagram reveals it working. Within the third week of the course, he valiantly tries to separate the distinction, alternating between particular, correct depictions which present what occurs inside a node, and extra typical diagrams which present one thing else. (If you wish to see these higher node depictions, this weblog put up properly reveals them.)

Studying neural networks shouldn’t be an train in decoding deceptive diagrams. We suggest a constructive, novel strategy for instructing and studying neural networks: use good diagrams. We would like diagrams that succinctly and faithfully symbolize the maths — as seen in Feynman diagrams, Venn diagrams, digital filter diagrams, and circuit diagrams.

So, what precisely can we suggest? Let’s begin with fundamentals. Neural networks contain many easy operations which already have representations in circulate diagrams {that electrical} engineers have used for many years. Particularly, we are able to depict copying knowledge, multiplying knowledge, including knowledge, and inputting knowledge to a operate which outputs knowledge. We will then assemble abbreviated variations of those symbols into an correct complete, which we’ll name Typically Goal Observable Depiction diagrams, or GOOD diagrams for brief. (Sorry, backronym haters.)

Let’s have a look at the constructing blocks. To begin, right here’s the way you present a complete of three copies of knowledge coming from a single supply of knowledge. It’s fairly intuitive.

And here’s a solution to present scaling an enter. It’s only a triangle.

The triangle signifies that the enter worth x₁ going into it’s scaled by some quantity w₁, to provide a end result w instances x₁. For instance w might be 0.5 or 1.2. Afterward it will likely be simpler if we transfer this triangle to the precise finish of the diagram (merging it with the arrow) and make it fairly small, so let’s draw it that approach.

OK, we admit it: that is simply an arrow with a stable triangle tip. The purpose, because it had been, is that the triangle tip multiplies the info on the arrow.

Subsequent, right here’s a solution to present including two or extra issues collectively. Let’s name the sum z. Additionally easy.

Now, we confirmed addition and multiplication above with some normal symbols. However what if we’ve got a extra basic operate that takes an enter and produces an output? Extra particularly, once we’re making neural nets, we’ll use an activation operate that’s usually a Sigmoid or ReLU. Both approach, it’s no downside to diagram; we simply present this as a field. For instance, say the enter to our operate is known as z and the operate of z is known as g(z) and produces an output a. It seems like this:

Optionally, we are able to notice that g(z) has a given enter — output attribute, which might be positioned close to the operate field. Right here’s a diagram together with a g(z) plot for ReLU, together with the operate field. In apply, there are only some generally used activation features, so it could even be adequate to notice the operate identify (e.g. ReLU) someplace close to the layer.

Or, we are able to abbreviate much more, since there shall be many, usually an identical, activation features in a typical neural community. We suggest utilizing a single stylized script letter contained in the operate field for a selected activation, e.g. R for ReLU:

Equally, Sigmoid might be represented with a stylized S and different features with a one other specified letter.

Earlier than shifting on, let’s make notice of a easy however key reality: we present knowledge (and its route of journey) as arrows, and we present operations (multiplying, including, basic features) as shapes (triangle, circle, sq.). That is normal in electrical engineering circulate diagrams. However for some motive, maybe inspiration from early pc science analysis which bodily colocated reminiscence and operations, this conference is ignored and even reversed when drawing neural networks.³ Nonetheless, the excellence issues as a result of we do practice the operate parameters, however we don’t practice the info, every occasion of which is immutable.

OK, again to our story. Since we’ll quickly be setting up a neural community diagram, it might want to depict a whole lot of “summing then operate” processing. To make our diagrams extra compact, we’ll make an abbreviated image that mixes these two features. To begin, let’s draw them collectively, once more assuming a ReLU for g(z).

Since we’re about to abbreviate issues, let’s see how they give the impression of being when positioned actually shut collectively. We may also drop the inner variable and performance symbols from the plot, and add some dotted strains to trace at a proposed form:

Primarily based on this, let’s introduce a brand new abstract image for “sum then operate”:

Its particular form serves as a reminder of what it’s doing. It additionally seems totally different than different symbols on objective, to assist us do not forget that it’s particular.⁴

Now, let’s put all of the diagrammed operations above collectively utilizing a easy instance of logistic regression. Our instance begins with a two-dimensional enter, multiplies every enter dimension’s worth by a novel fixed, provides collectively the end result together with a relentless b (which we name bias), and passes the sum by way of a Sigmoid activation operate. For causes that can make sense later, we present the bias as the number one instances the worth b. For completeness (and foreshadowing) we give all these values names which we are able to present on the diagram. The inputs are x₁ and x₂, and the multiplication components embody the weights w₁ and w₂ in addition to the bias b. The sum of the weighted inputs and bias is z, and the output of operate g(z) is a.

About that quantity “1” proven decrease left on the diagram. The #1 isn’t an enter, however by exhibiting this quantity along with the inputs, we make clear that every of those values is multiplied by a parameter contributing to the sum. This manner we are able to present each values of w (enter weights) and values of b (bias) on the identical diagram. Dangerous diagrams normally skip exhibiting the bias however GOOD ones don’t. Skipping bias in a diagram is particularly dangerous in conditions the place a community may typically deliberately omit the bias; if the bias isn’t proven, a viewer is left to guess whether or not it’s a part of the community or not. So please intentionally embody or exclude bias in your diagrams.

Now let’s clear this up a bit through the use of the “sum then operate” image we outlined above. We additionally present the variable names beneath the diagram. Word that we point out a Sigmoid operate with the stylized script letter S within the “sum then operate” image.

That appears fairly easy. It’s a GOOD factor.

Now, let’s construct one thing slightly extra attention-grabbing: an precise neural community (NN) with a hidden layer of three items with ReLU activations, and one output layer with a Sigmoid activation. (For those who’re not acquainted, a hidden layer is any layer besides the enter or the output.) Word that this is identical structure used within the Mountain View community diagram above. On this case, every enter dimension, and the enter layer bias, connects to each node within the hidden layer, then the hidden layer outputs (plus bias worth once more) connect with the output node. The output of every operate continues to be known as a however we use bracketed superscripts and subscripts to respectively denote which layer and node we’re outputting from. Equally, we use bracketed superscripts to point the layer to which the w and b values level. Utilizing the model from the earlier instance, it seems like this:

Now we’re getting someplace. At this level, we additionally see that the size of W and b for every layer are specified by the size of the inputs and the variety of nodes in every layer. Let’s clear up the above diagram by not labeling each w and b worth individually.

All photos on this article by the authors.

Ta-dah! We have now a GOOD neural community diagram that can be good. The learnable parameters are each proven on the diagram (as triangles) and summarized beneath it, whereas the knowledge is proven immediately on the diagram as labeled arrows. The structure and activation features for the community, usually known as hyperparameters, are seen by inspecting the structure and nodes on the diagram itself.

Let’s contemplate the advantages of GOOD diagrams, unbiased of unhealthy ones:

  • It’s straightforward to see the order of operations for every layer. The multiplications occur first, then the sum, then the activation operate.
  • It’s straightforward to see (immutable) knowledge flowing by way of the community as separate from (trainable) parameters belonging to the community.
  • It’s straightforward to see the dimensionality of the w matrix and b vector for every layer. For a layer with N nodes, it’s clear that we’d like b to be of form [N,1]. For a layer with N nodes coming after a layer with M nodes (or inputs), it’s clear that w is of form [N,M]. (Nevertheless, one nonetheless should memorize that the form is [outputs, inputs] not [inputs, outputs].)
  • Associated, we see the place precisely the weights and bias exist, which is between layers. Conventionally they’re named as belonging to the layer they output to however apt college students utilizing GOOD diagrams are reminded that that is only a naming conference.

Let’s additionally assessment how GOOD diagrams differ from unhealthy ones:

  • They present the bias at every layer. They don’t omit the bias.
  • They present knowledge as knowledge, and features as features. They don’t confuse the 2.
  • They present when knowledge is copied and despatched to features. They don’t skip this step.
  • They present all of the steps within the right order. They don’t incorrectly reorder or omit steps.
  • They’re moderately clear and concise. OK, the unhealthy ones are a bit extra concise.

This text has spilled a whole lot of ink overlaying what’s improper with unhealthy diagrams and justifying GOOD ones. However in case you are an ML teacher, we encourage you to simply begin utilizing GOOD diagrams, with out fanfare. GOOD diagrams are extra self-explanatory than different choices. You’ll be overlaying how neural nets work in your course anyway, so introducing GOOD diagrams at that time is a good suggestion.

And naturally, as a service to your college students, it’s a good suggestion to indicate some unhealthy diagrams too. It’s vital to know the way the skin world is drawing issues, even when it’s nonsense. In our estimation, it’s a lot simpler to be taught from one thing correct after which to think about one thing complicated, than it’s to do the reverse.

This completes the primary article in what’s going to change into a collection if it catches on. Specifically, we’ve got our collective eye on Simplified Community diagrams which compactly symbolize the sorts of absolutely linked networks proven above, and which may additionally stand some enchancment. Convolutional Community diagrams deserve their very own remedy. We’re additionally wanting into creating a software program package deal which automates drawing of GOOD diagrams.

The authors thank Jeremy Schiff and Mikiko Bazeley for his or her help with this piece.

1) Primarily based on the opposite layers, possibly the primary diagram is working the inputs into nontrivial activation features, from which we get values doubtless totally different from the inputs. However there have been no examples within the related programs that work this fashion, so it wouldn’t make sense to incorporate such a diagram because the solely absolutely linked diagram on the cheat sheet. Or possibly the primary layer “a” values proven are an identical to the inputs, wherein case the activation features are id features which incur trivial and pointless processing. Both approach, the diagram is ambiguous and due to this fact unhealthy.

2) Both of the primary two diagrams seems prefer it might be an unlucky condensation of higher, older diagrams, corresponding to these in chapter 6 of the second version of Sample Classification by Duda, Hart and Stork (which one in all us nonetheless has in onerous copy from CS229 at Stanford in 2002). That e book reveals activation features in round items (which is best than exhibiting their outputs inside the items), and appropriately reveals outputs leaving the items earlier than copies are made and cut up off to the following layer. (It additionally reveals the inputs and bias oddly, although.)

3) In case your examine has progressed to incorporate Convolutional Nets (CNs), you will notice that CN diagrams routinely present knowledge as blocks and processes as annotated arrows. Don’t fret. For now, simply do not forget that there’s a necessary distinction between knowledge and processes, and, for absolutely linked neural nets, a superb (or GOOD) diagram will clarify which is which.

4) For you logic followers on the market that see the “sum then operate” image as an and gate working in reverse, do not forget that and gates are irreversible. Subsequently, this new image will need to have one other that means, which we outline right here.
